MacVision Wireless NVR KIT 8ch Set, 8 Bullet Wifi Camera + NVR Box CCTV Combo, 2Mpx, 1080P Full HD
Store: Computer Store
Brand: MacVision
Specifications
MacVision Wireless NVR KIT 8ch Set, 8 Bullet Wifi Camera + NVR Box CCTV Combo, 2Mpx, 1080P Full HD
Hisilicon H.265 Home Security CCTV Camera System Wireless 2MP Waterproof WiFi NVR kit

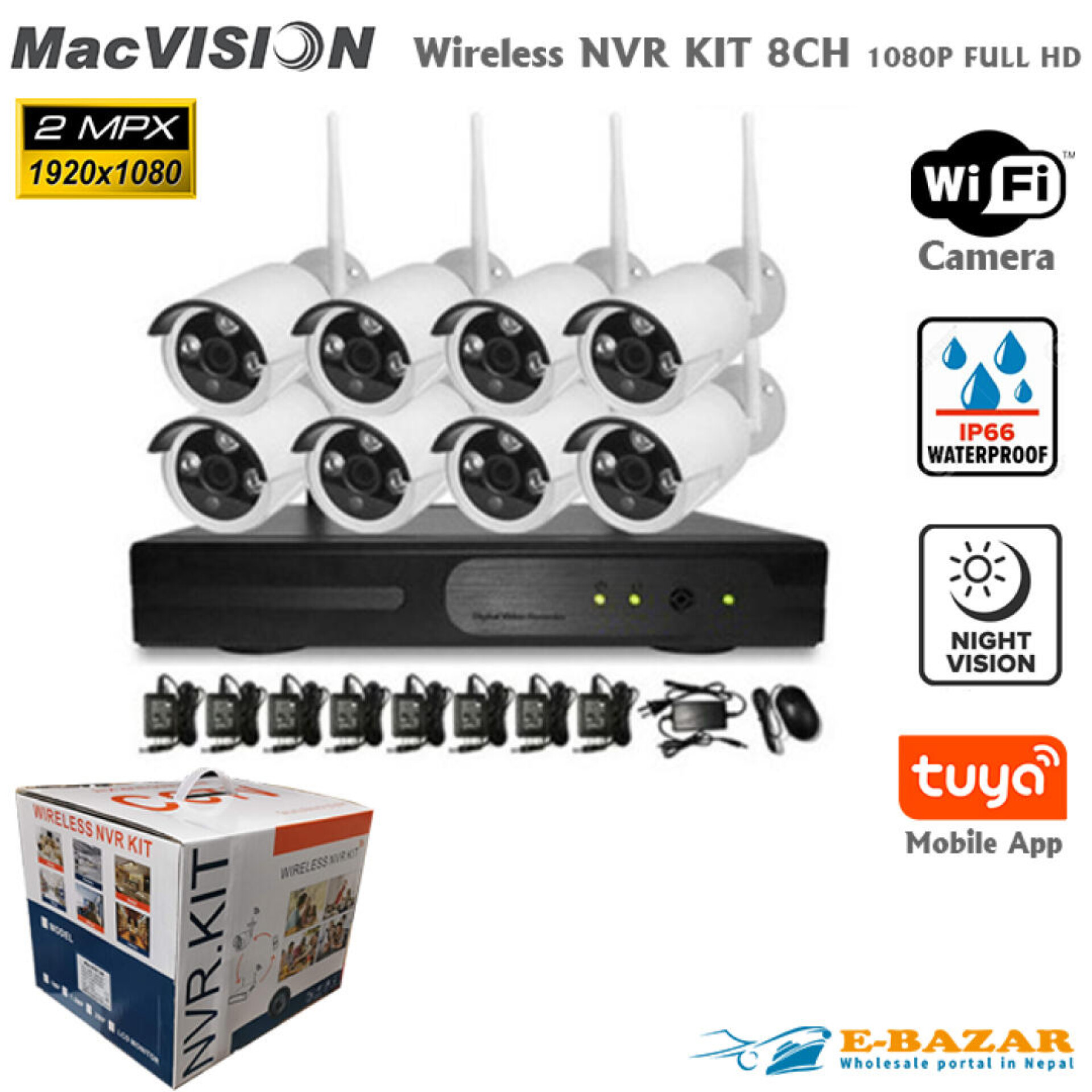

What Included in the NVR Kit Combo Box:
● 8 pcs metal Bullet IP wireless cameras

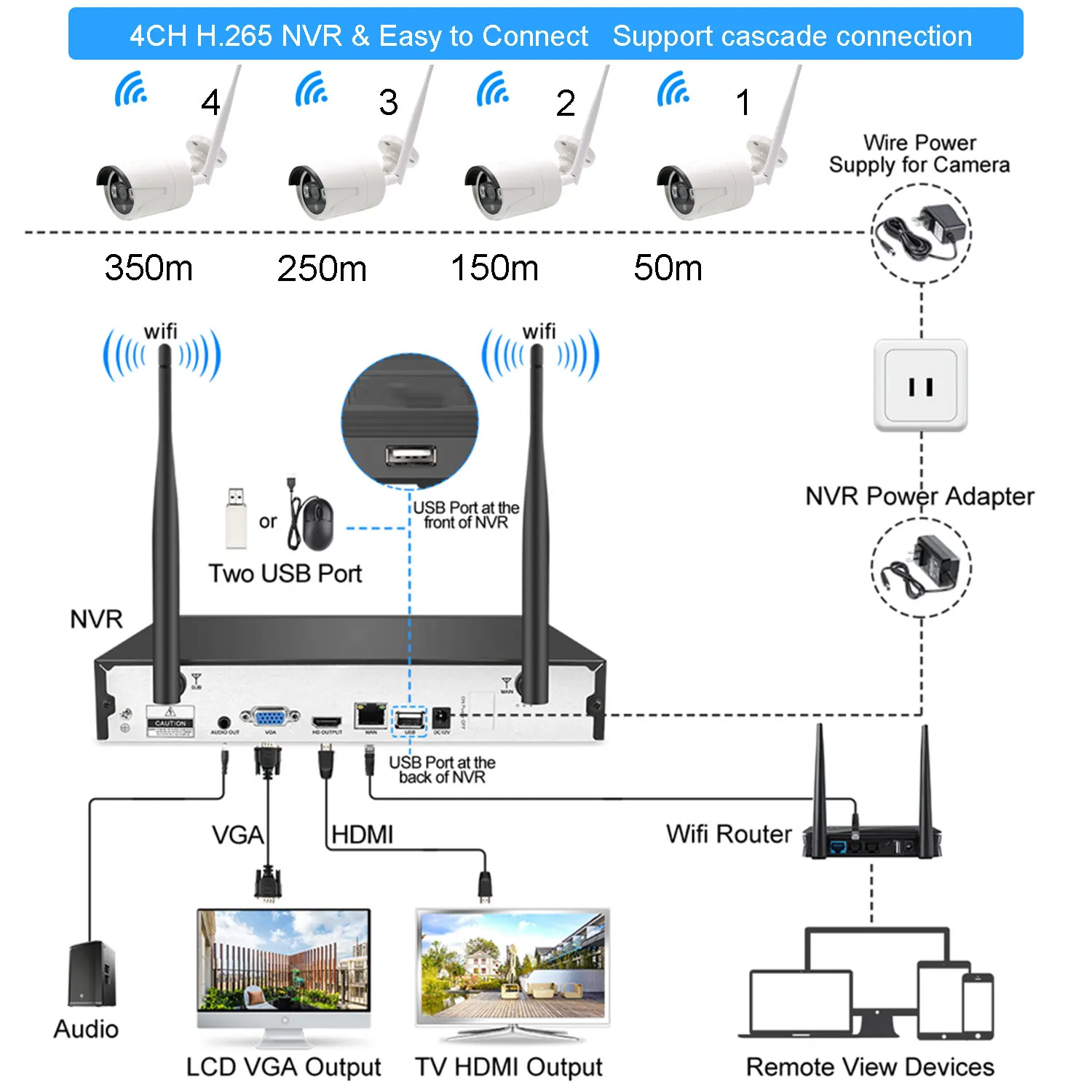

● 1 pcs H.265 wireless NVR,VGA, HDMI, double 5DB antennas
● 1 pcs 1M RJ45 cable,
● 1 pcs mouse
● 8 pcs DC 12V 1A adaptors + 1pcs 12V 2A Adaptors
Note: Internal hard disk, monitor and fitting charges are not included.
Transmission in open space up to 50m to 100Meter without abstacle
Key Features:
* 8CH h.265 WiFi NVR + 8pcs Hisilicon Chipset wifi cameras
* Convenient Installation + Plug and play
* Tuya APP, can add Google Home and Amazon Alexa function
* Support1 SATA HDD, double 5DB antennas
* Wireless transmission stability:2.4G wireless
* Special and separate network for wireless transmission
* Transmission in open space up to 150m without abstacle, Support concatenation
* Quick setup, with built-in multilingual management page
Product Parameters
|
Wireless NVR |
||
|
Model Number |
GSA-WB8104TA |
|
|
processor |
professional industrial processor |
|
|
operation system |
embed linux operation system |
|
|
video audio input |
network video input |
4 channel |
|
video output |
HDMI output |
1channel，resolution：1024x768, 1280x1024,1366x768, 1440x900,1920x1080p |
|
VGA output |
1channel ，resolution：1024x768, 1280x1024,1366x768, 1440x900,1920x1080p |
|
|
video compression |
standard H.264，H264+，H.265， H265+ |
|
|
video encoding specification |
recording resolution |
1080P/960P/720P |
|
playback |
4 channel |
|
|
video manage |
recording/capture mode |
manual recording、time recording 、motion detection recording、alarm recording |
|
playback mode |
instant playback、general playback、event playback |
|
|
backup mode |
general backup |
|
|
HDD drive |
type |
1 SATA connector |
|
max capacity |
every sata MAX 6TB |
|
|
eternal connector |
network port |
one RJ45 10M/100M self adaptive ethernet port |
|
2 antenna |
||
|
USB port |
1 USB 2.0(2 USB port optional) |
|
|
audio port |
1，3.5 inch headphone jack (optional） |
|
|
network management |
network protocol |
UPnP（plug and play）、SMTP（email service）、PPPoE（dial up networking）、DHCP etc. |
|
Others |
power supply |
DC 12V 2A |
|
power consumption（without HDD） |
≤5W |
|
|
working temperature |
-10℃--＋55℃ |
|
|
working humidity |
10％--90％ |
|
|
size |
258×210×42mm |
|
|
weight （no HDD） |
≤1Kg |
|
|
Wireless IPC |
||
|
Model Number |
GSA-WB8104TA ( 1/2 MP Optional ) |
|
|
Mega Pixel |
1.0MP / 2.0MP |
|
|
processor |
professional industrial processor |
|
|
operation system |
embed linux operation system |
|
|
image sensor |
1/2.7”~ 1/3" Progressive Scan Sensor |
|
|
S/N Ratio |
> 39.1 dB |
|
|
video compression |
standard H.265, H.264，H265+ |
|
|
resolution |
Max support 2560×1920 |
|
|
Min illumination |
Color: 0.01 Lux |
|
|
B/W: 0.001 Lux |
||
|
lens |
3.6mm |
|
|
OSD |
Date Time & Title |
|
|
white balance |
Auto |
|
|
Day & Night |
Auto / Color / BW |
|
|
3D-DNR |
Auto |
|
|
Mirror/Flip |
On / Off |
|
|
privacy masking |
4 Zone Selectable |
|
|
stream |
Main stream：1920x1080@20fps for 2MP IPC |
|
|
Sub stream： 640x360@15fps 2MP IPC |
||
|
anti-lighting grade |
Standard IEC61000-4-5 |
|
|
power input |
DC12V-1A |
|
|
power cocumption |
≤6W |
|
|
connector |
reser button/ WIFI 802.11b/g/n |
|
|
working humidity/ temperature |
-10℃ to +50℃ / 30% to 80% RH |
|
|
storage temperature / humidity |
-20℃ to +60℃ / 20% to 90% RH |
|
|
size |
66*180mm |
|
