Specifications
BOYA BY-M110 3.5mm TRRS Plug-in Miniature Microphone for Smartphone Tablet Desktop Computer Laptop PC Audio Video Recording Mic
Overview

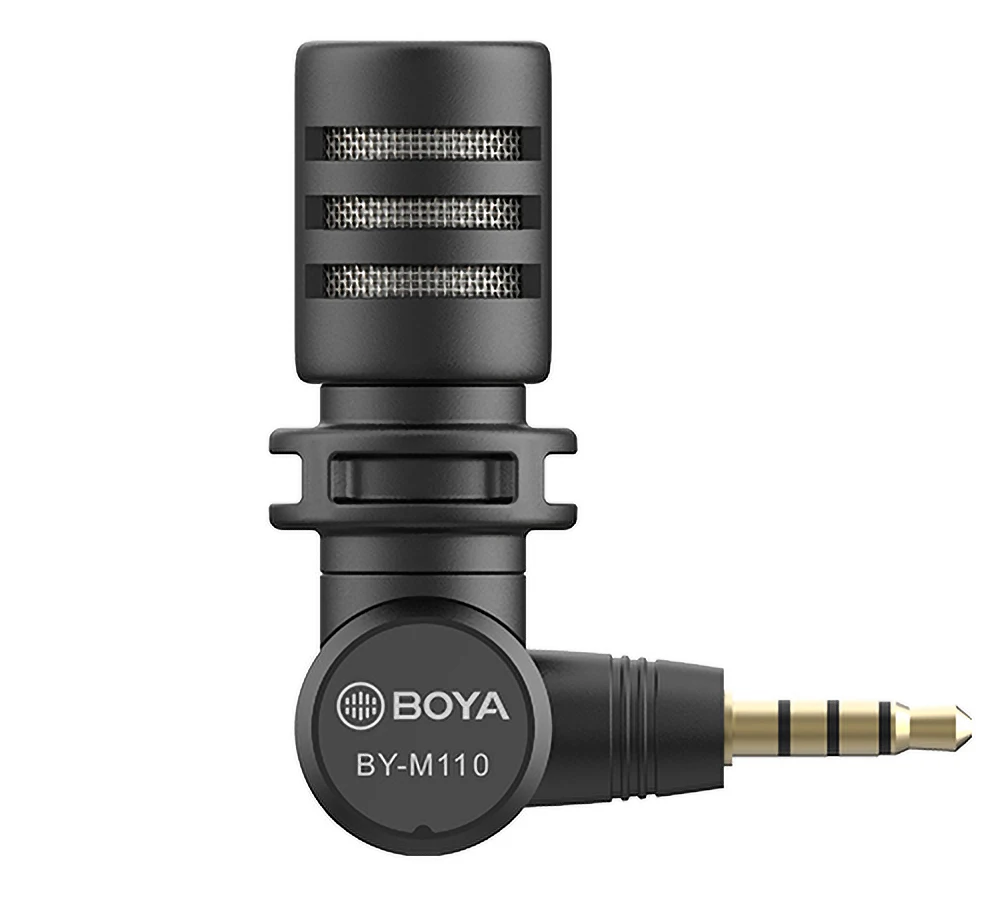

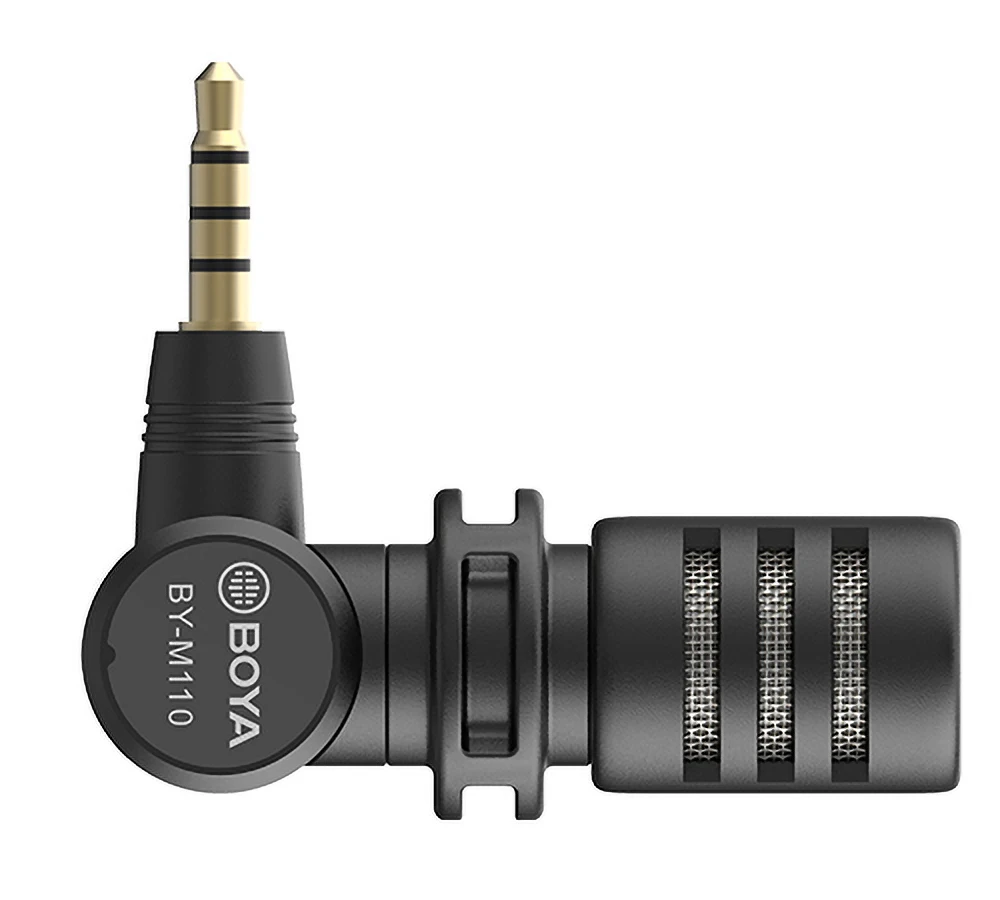

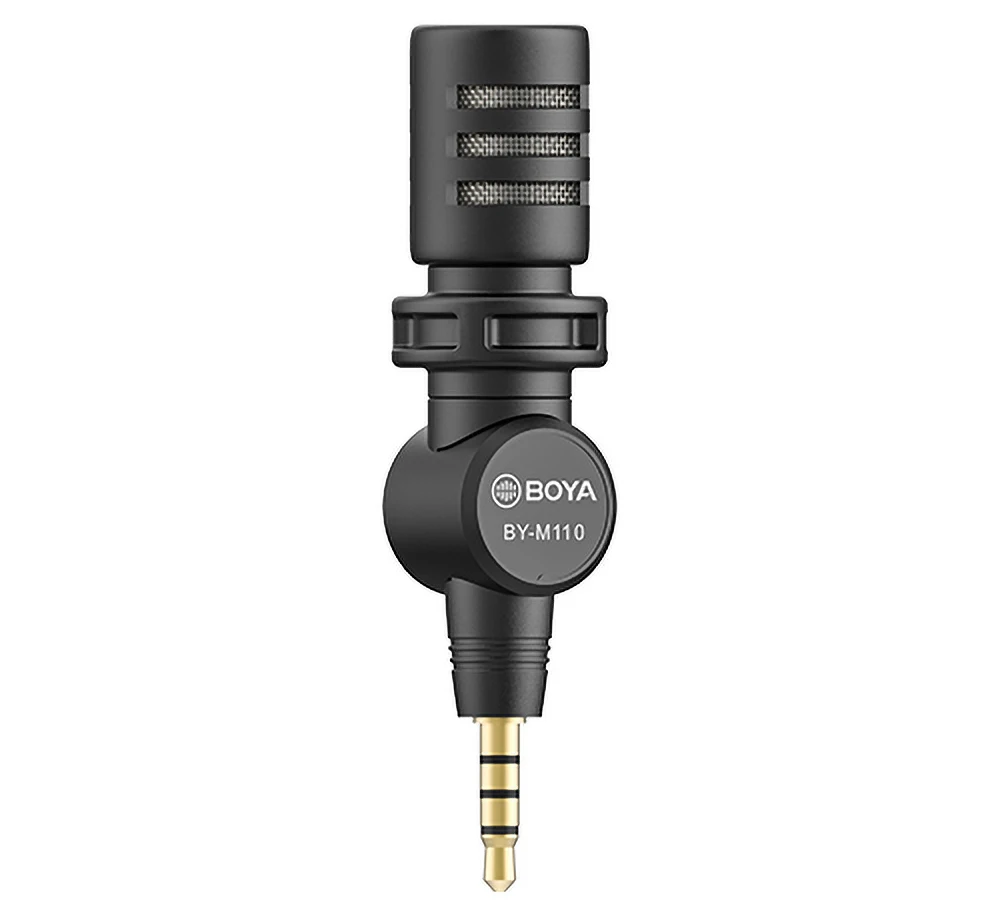

BY-M110 is miniature size, omnidirectional 3.5mm TRRS microphone for smartphone, laptop, tablet and others.
Features
3.5mm TRRS microphone for smartphone, laptop, tablet and others 50Hz to 18kHz frequency response Plug and play operation 180° rotating head, convenient for capturing audio Includes foam windscreen
Specifications
Sensitivity: -36±2dB (odB=1V/ Pa, at 1KHz) Polar Pattern: Omnidirectional Signal to Noise Ratio: 65 dB S:(f=1KHz, S.PL=1Pa) NE (A-Weighted curve) Frequency Response: 50Hz-18kHz Connector: 3.5mm TRRS Weight: 9g (0.3 oz) Cable Length: p18x74mm (p0.7x2.9")
What is Included

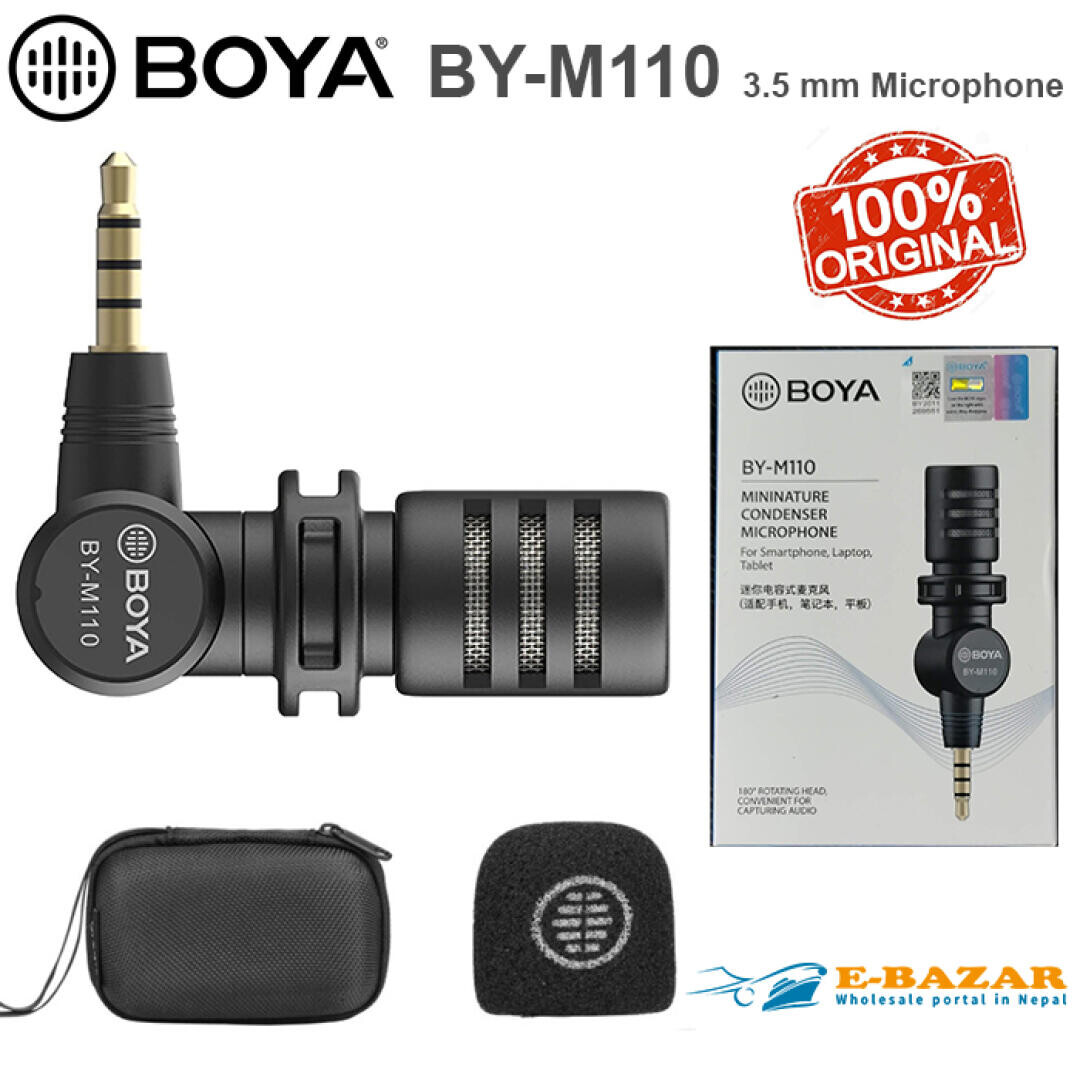

1 x Plug-in Microphone 1 x Foam Windscreen 1 x Portable Storage Bag 1 x Product Manual 1 x Warranty Card
How to use
1. Plug the 3.5 mm TRRS connector into your recording device's audio input jack. 2. Tilt and turn the microphone towards the subject you want to record. 3. Turn on your recording device, then record a short audio segment to make sure that the microphone is working correctly: 4. Use your recording device to record the audio you need. Kindly Note: If sound is too quiet, move the microphone closer. If sound is distorted, the audio is too loud. Move the microphone farther away.
